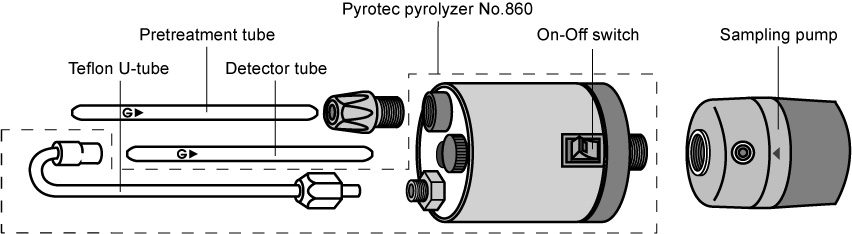

GASTEC developed the Pyrotec Pyrolyzer system to enable precise and easy detection of Sulphuryl Fluoride. It converts Sulphuryl Fluoride (using process known as thermal cracking) into an easily measurable gas.
![Pyrotec pyrolyzer 860](/files/topics/2097_ext_07_0.jpg)
![](/files/topics/2097_ext_20_0.jpg)
![](/files/user/201902181114_1.jpg)
Specifications
Power source | Four size AA 1.4 dry batteries |
---|---|
Continuous operation time | 2 hours |
Filament life | 1000 measurements using 20 mm of Sulphuryl fluoride |
Standard operating temperature range | 0 - 40ºC |
Dimensions | φ68mm x 150mm(H) |
weight | 245g |
Detector tube
Substance to be measured | Tube no. & name | Measuring range (ppm) |
Scale range (ppm) |
No. of tests per box |
Detector tube type | Notes | |
---|---|---|---|---|---|---|---|
Sulphuryl fluoride | 231 | Sulphuryl fluoride | 1-20 | 1-20 | 4 | PYROTEC | Use Pyrotec Pyrolyzer No. 860 |
Options
![](/files/topics/2098_ext_07_0.jpg)
GASTEC fumigation probe is connected to gas detector tube and inserted through rubber seal of the closed container to measure residue fumigants.
